Haro Johnny 5 Electric Bike

The Haro Johnny 5 Electric Bike pulls a lot of it's style from BMX and adds the fun and convenience of a 500w rear hub electric motor.

• 500w motor

• 672WH Samson Battery
• Twin top tube 6061 Aluminum frame
• Full chromoly 1-1/8" - 1-1/5" tapered, internally threaded steerer tube fork, M25
• Alloy compression cap, 3/8" dropouts, and 28mm offset.

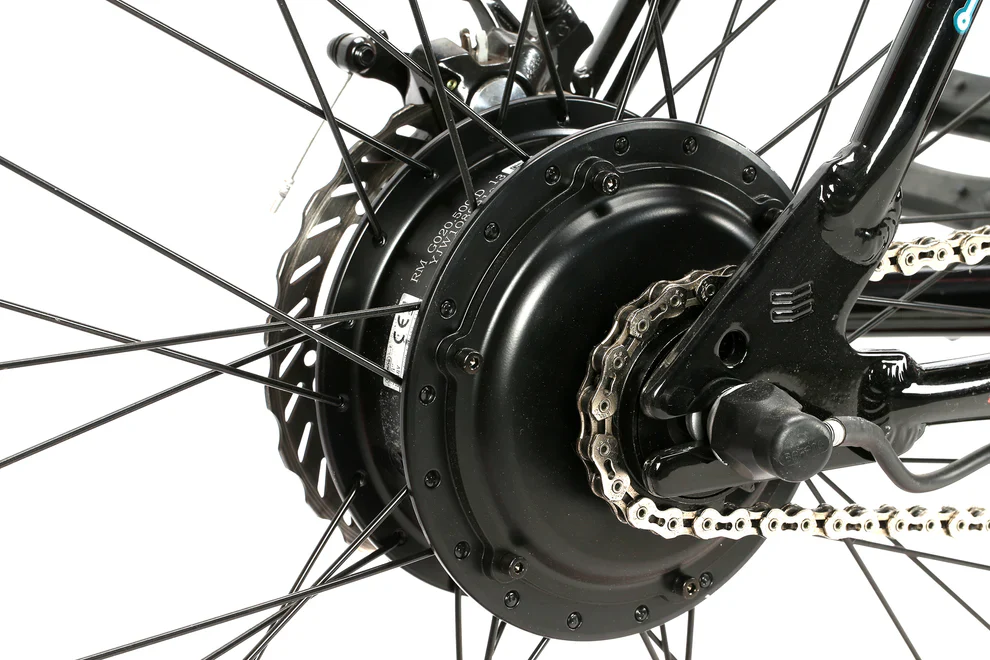

• Bafang 48V, 500W 36H, rear hub
• 672WH (48v, 14AH), 50 cell, Samsung internal down tube battery
• 28 Mile Range +/- (tested on level 2 on rolling roads)
• Five power levels, left side display
• Right side thumb throttle
• Full pedal assist

Frame Components

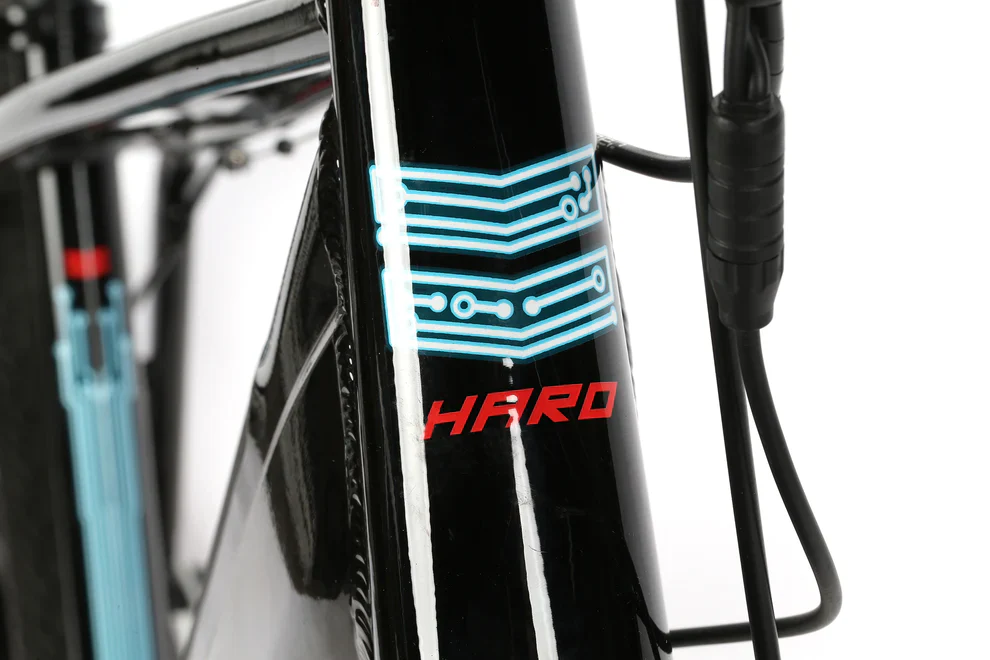

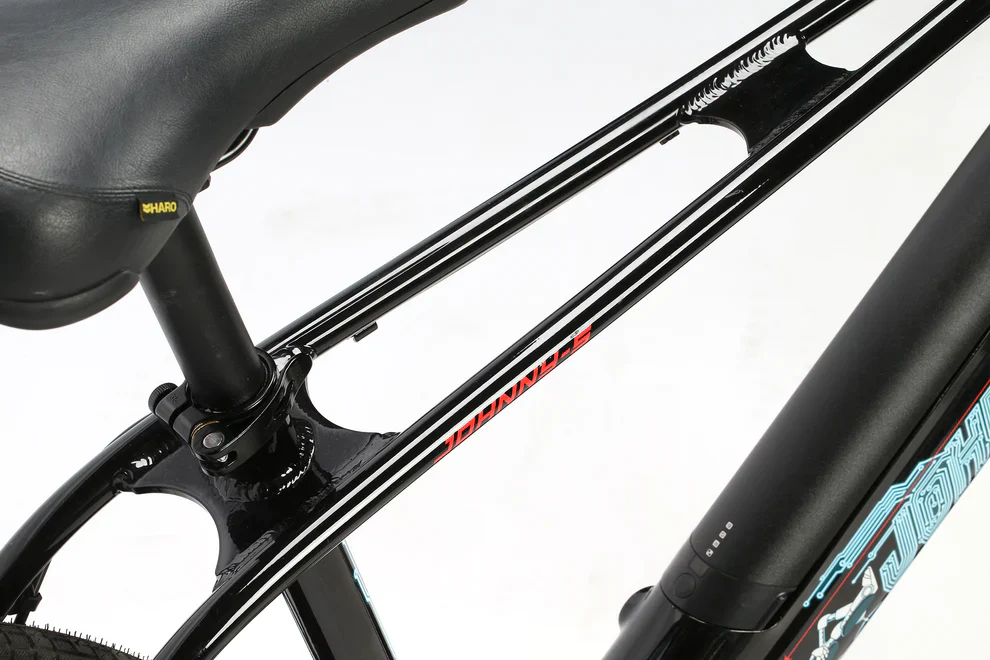

Frame	6061-T6 Heat treated aluminium twin top tube frame.
Fork	Full chromoly 1-1/8" - 1-1/5" tapered fork with 3/8" dropouts
Headset	FSA 1 1/8" X 1.5" Sealed Bearing
Drivetrain
Cranks	3-pc Hollow forged aluminium with tapered square spindle - 170mm
Sprocket	36t Alloy Chainring with aluminium chain guard
Bottom Bracket	Euro square tapered pedal assist
Gearing	34/15
Chain	KMC 410 Z chain
Drive Unit	Bafang 500w
Battery	Internal 50 cell, 48V, 672WH
Pedals	FPD PC 9/16"
Wheels
Tires	Kenda "Kwick Seven" 27.5" x 2.4"
Wheels/Rims	27.5" Alloy 36h, Double Wall
Front Hub	Sealed bearing, High flange, 36H female axle front hub
Freewheel/Cassette	16t Cassette
Spokes	13g
Braking System
Brakes	Promax Mechanical Disc Brake, 160mm Rotor
Brake Levers	Promax 2.5 finger
Other Components
Grips	Baseline Flangeless
Handle Bar	Haro 5" Legends 2-piece bar
